| 品牌 | Hirschmann德国赫斯曼 |
|---|---|
| 型号 | DIN43650系列 |
| 工作电流:10A / 6A | 加工定制:否 |
| 材质:PA+30%GF | 防护等级:IP65 |
| 触点材质:CuZn(Sn) | 类型:防水仪表盒 |
| 适用范围:变送器 电磁阀 | 外形尺寸:27X27X34（mm） |

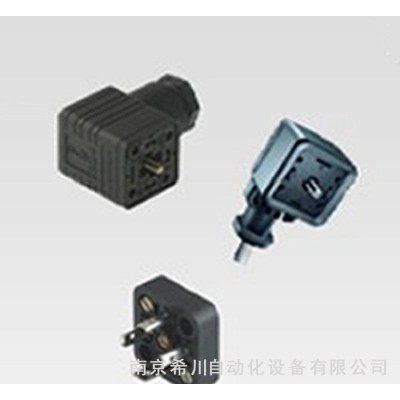

南京希川自动化设备有限公司专业提供电磁阀、变送器用德国Hirschmann赫斯曼工业连接器 赫斯曼接头 电磁阀插头。
本系列产品符合德国DIN43650/EN175301-803标准，A、B、C三个子系列，可以适用于各种电磁阀，液压阀，压力变送器，温度变送器，压力开关，压力传感器，机械设备等，互换性强，可以满足不同客户、不同场合的需求。有各种普通黑色，透明带指示灯，带电路保护，带整流器的插头可选。
A型——2+PE/3+PE；插针间距为18mm，圆形或方型底座，广泛应用于液压阀，电磁阀，比例阀，压力传感器及变送器，温度传感器等领域。额定电流10A，电缆密封管PG9/PG11，适用电缆直径6-8mm/8-10mm,壳体材料PA+30%GF,触点材料CuZn(Ag)。
B型——2+PE；插针间距有两种规格9mm或11mm，该产品在电磁阀，液压阀，比例阀，伺服阀等领域有广泛应用。额定电流10A，电缆密封管PG9，适用电缆直径6-8mmm,壳体材料PA+30%GF,触点材料CuZn(Ag)。
C型——2+PE/3+PE；插针间距为8mm或9.4mm；该系列产品外形精致小巧，插拔方便，价格便宜。广泛应用于压力、温度等各种自动化测量领域。额定电流6A，电缆密封管PG7，适用电缆直径4-6mm,壳体材料PA+30%GF,触点材料CuZn(Ag)。
其他连接器产品有M12系列传感器用连接器，M16系列机械设备用小型圆形连接器，比例阀用连接器，M27机械设备用圆形连接器，M23编码器连接器
南京希川自动化设备有限公司联系方式：单先生 电话：025-58607989 手机：18751808105 传真：025-58402959 QQ：2496603078 公司主页：地址：江苏省南京市浦口区大桥北路9号。可以为您提供专业的压力、温度、流量、液位、连接器、HIRSCHMANN赫斯曼接头等工业自动化产品的服务与技术支持。
Hydraulic, pneumatic and electromagnetic actuators and sensors – where hardness meets hardness, the GDM-series is fully within its element. And for this reason, the rectangular connector with a high loading capacity is especially well-suited for use with solenoid valves, pressure sensors, flow controllers and in heating equipment in control systems for gas appliances and oil burners. Even in vibration-endangered devices and structural components such as construction machines or in conveyor installations, it is possible to have a highly durable solution with the use of crimp technology.
With built-in electronic components such as rectifiers, optical status displays and protective elements, the GDM-series can be connected to devices where these functions have not been integrated. And last but not least, the GDM-series can be used wherever a “metal-free” environment is required, for example in the food sector and the chemical industry.
The GDM-series is used wherever rectangular connectors have to have resilient qualities, such as for example on drilling rigs, conveyor installations or in construction machines.
The rectangular connector with a large range of cable diameters from 4.5mm to 14 mm is protected against dust and sprayed water with vibration-free locking with a central screw; a knurled screw can also be supplied for use without tools. The valve professional for pneumatic and hydraulic systems. Durability tests successful: the GDM-series can outplug many others.
德国hirschmann赫斯曼工业连接器
GDM 2016 (934 393-100)
GDM 2009 (931 965-100)
GDM 2009 J (931 236-100)
GDM 2011 (931 957-100)
GDM 2011 J (932 106-100)
GDM 2012 J (934 441-100)
GDM 2014 J (932 107-100)
GDM 3016 (934 395-100)
GDM 3009 (931 969-100)
GDM 3009 J (932 214-100)
GDM 3011 (931 952-100)
GDM 3011 J (932 109-100)
GDM 3012 J (932 519-100)
GDM 3014 J (932 110-100)
GSA 2000 N (932 967-100)
GSA 3000 (932 597-100)
GDML 2011 GB1 LED 24 (932 446-002)
GDML 2011 LED 24 GB (932 501-002)
GDML 2011 LED 24 (932 332-002)
GDML 2011 LED 24 YE (932 527-002)
GDML 2011 LED 24 HH P (932 444-002)
GDML 2011 LED 24 HH (932 336-002)
GDML 2011 LED 24 HH YE (932 640-002)
GDML 2011 LED 24 VR VE (933 737-212)
GDML 2011 LED 24 VR (932 521-002)
GDML 2011 LED 48 HH (932 648-002)
GDML 2011 LED 48 VR (933 924-212)
GDML 2011 LED 48 VR VE (933 926-212)
GDML 2011 GB1 LED 48 (933 925-212)
GDML 2011 LED 120 YE (933 738-212)
GDML 2011 LED 120 VR YE (933 927-212)
GDML 2011 LED 230 YE (933 739-212)
GDML 2011 LED 230 VR YE (933 916-212)
GDML 3011 LED 24 BO (932 856-002)
GDML 3011 LED 24 RG (932 857-002)
GDML 3011 LED 230 RG (933 748-212)
GDME 2011 (933 029-100)
GDME 2013 (933 030-100)
GDME 3011 (933 022-100)
GDME 3013 (933 031-100)
